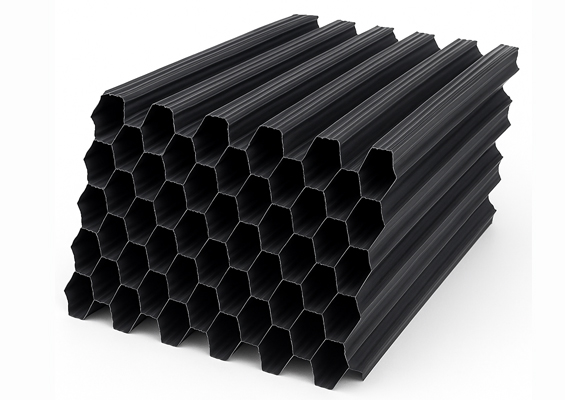

Tube Settler Media
Tube Settler Media is a compact, high-efficiency sedimentation enhancement system designed to increase settling velocity and clarify water in STPs, ETPs, and industrial wastewater treatment units.
Manufactured from UV-stabilized, durable polypropylene (PP), the media is arranged in modular tubes or lamella panels to maximize surface area and promote laminar flow. This accelerates the settling of suspended solids and reduces the footprint of sedimentation tanks.
Tube settler media is ideal for both new installations and retrofits, enhancing the performance of clarifiers, sedimentation tanks, and primary/secondary settling basins.
Features
- High surface area per unit volume for efficient solids separation
- Compact design reduces clarifier footprint
- Modular and easy to install, remove, and maintain
- Chemically resistant and UV-stabilized for long service life
- Promotes laminar flow, minimizing turbulence and resuspension
- Lightweight and durable with minimal maintenance requirements
- Compatible with STP, ETP, industrial, and municipal applications
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Polypropylene (PP), UV stabilized |
| Shape / Configuration | Tubular / Lamella Panels |
| Surface Area | 150 – 300 m²/m³ |
| Effective Settling Surface | 80 – 200 m²/m³ |
| Specific Gravity | 0.92 – 0.96 g/cm³ |
| Operating Temperature | Up to 80°C |
| pH Range | 5 – 9 |
| Voidage / Open Area | ≥ 90% |
| Expected Life | > 15 years |
This Tube Settler Media efficiently improves sedimentation efficiency, reduces tank size, and enhances water clarification for a wide range of industrial and municipal water treatment applications.
