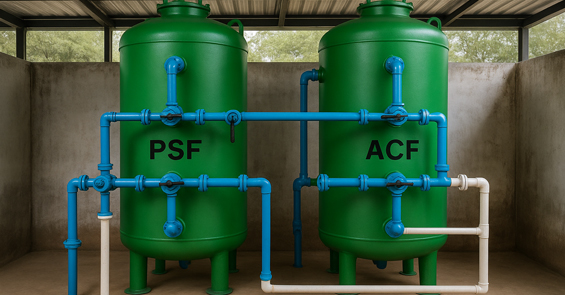

Pressure Sand Filter (PSF)
The Pressure Sand Filter (PSF) is a high-performance filtration system designed to remove suspended solids, turbidity, dirt, and fine impurities from raw water. It uses a multi-layer sand bed inside a pressure vessel, ensuring efficient depth filtration and consistent output quality.
Venza Water’s PSFs are engineered for industrial, commercial, and domestic applications, delivering clean and clarified water as a cost-effective pre-treatment solution.
01
Functionality
The filter operates by passing raw water under pressure through layers of graded sand and supporting gravel. Suspended particles are trapped within the sand bed, while clear water flows out.
As impurities build up, the pressure drop increases across the bed. At this stage, the system undergoes backwashing, where water flows in reverse to flush out the trapped contaminants, restoring filter efficiency and performance.
02
Features
- Low maintenance & easy operation
- Removes turbidity & suspended particles (up to 20–40 microns)
- Robust vessel design (FRP, MS, or SS options)
- Manual, semi-automatic, or automatic control
- Cost-effective & reliable pre-treatment
- Long service life with durable filter media
- Protects downstream equipment (RO, UF, softeners, etc.)
03
Application
- Industrial Use – Pre-treatment for RO plants, cooling towers, boiler feed water
- Commercial Use – Office complexes, malls, hospitals, hotels
- Domestic Use – Groundwater / surface water clarification for households & societies
- Specialized Applications – STP/ETP polishing, food & beverage, pharma, textile & power plants
Contact Venza Water today to discuss your project requirements and get a customized solution.
