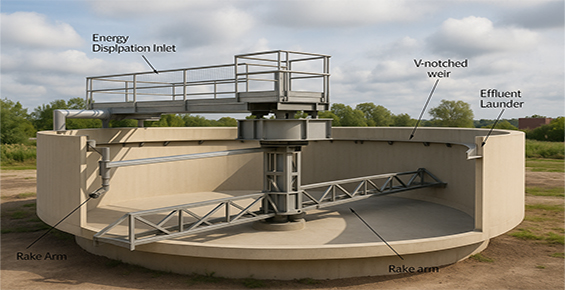

Clarifier
A Clarifier is a primary or secondary sedimentation unit used to remove suspended solids and settleable particles from water or wastewater. It is widely used in STPs, ETPs, industrial wastewater treatment plants, and municipal water treatment systems.
At Venza Water, our clarifiers are designed for high efficiency, long service life, and minimal maintenance, helping to improve effluent quality and protect downstream treatment units.
Features
- Efficient solid-liquid separation with uniform sedimentation
- Circular or rectangular designs available
- Low-maintenance operation with robust construction
- Supports continuous sludge removal via scraper or suction systems
- Durable materials: MS, SS, or FRP for corrosion resistance
- Can be integrated with Tube Settlers or Lamella Plates for improved performance
- Customizable capacity to meet industrial or municipal requirements
Technical Specifications
| Parameter | Specification / Range | Type | Circular / Rectangular / Tube Settler integrated |
|---|---|
| Capacity | 5 – 5000 m³/day (customizable) |
| Tank Material | Mild Steel (MS), Stainless Steel (SS), FRP |
| Sludge Removal Type | Scraper, suction, or hopper system |
| Surface Loading Rate | 0.5 – 3 m³/m²/h |
| Detention Time | 1 – 4 hours |
| Depth of Clarifier | 2 – 5 m |
| Inlet/Outlet Arrangement | Customizable based on flow design |
| Expected Life | > 15 years |
The Venza Water Clarifier provides reliable sedimentation, high solids removal efficiency, and protection for downstream treatment processes, making it suitable for both municipal and industrial water treatment applications.
